Product introduction:
The first wireless remote control in China is convenient and safe to operate. It is equipped with an automatic feeding mechanism and a wire feeding mechanism to save time and labour when feeding and threading steel bars.
2. A curved steel bar straightening mechanism (invention patent: an arc wire feeding automatic balance hoop bending machine, patent no. ZL201610600651.3) which prevents axial torsion in deformed steel bars. Double-line feeding and single-line independent straightening allow for independent straightening without shutdown.
3. An independent reverse feeding system enables two-way feeding and bending, as well as complete plate reinforcement of any size.
Product Parameter
| Automatic Stirrup Bender Machine YT-12S |
| Remote Function | 3 way control | Straightening System | S ARC STRAIGHT |
| Single Wire | 6-12MM | Production Capacity | 750PCS/Hour(single) |
| Double Wire | 6-10MM | Production Capacity | 1500PCS/Hour(double) |
| Bending Angle | 1-180° | Bending Head Move | Up and down |
| Max Traction Speed | 130M/MIN | Bending Direction | Bi-direction |
| Length Accuracy | ±1MM | Machine Dimension | 3000*1280*2000MM |
| Angle Accuracy | ±1° | Collector Dimension | 6600*810*1640MM |
| Main Machine Weight | 2000KG | Rated Power | 29.5KW |
Product Details:

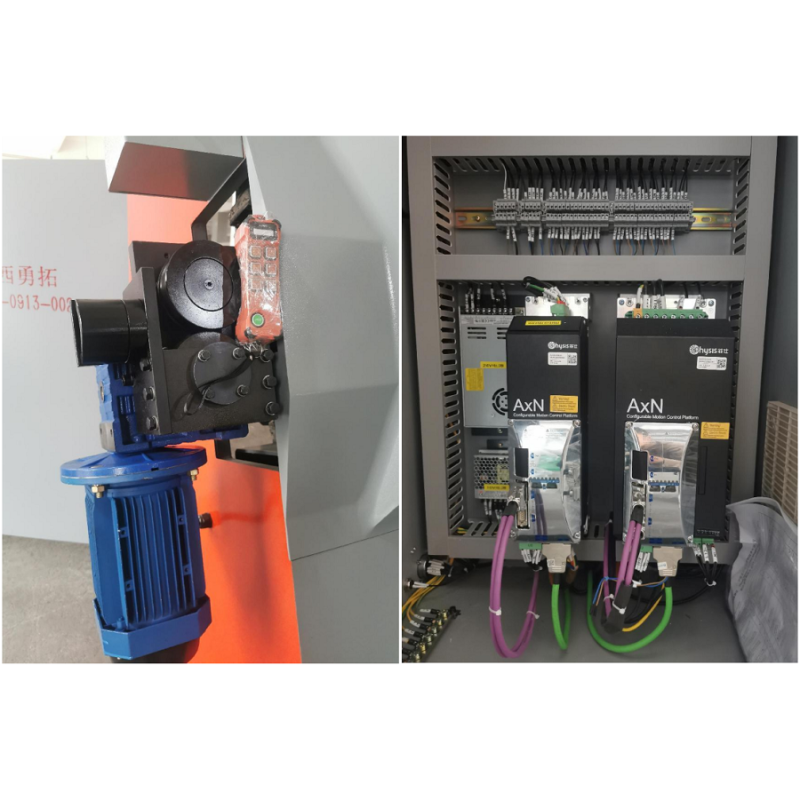

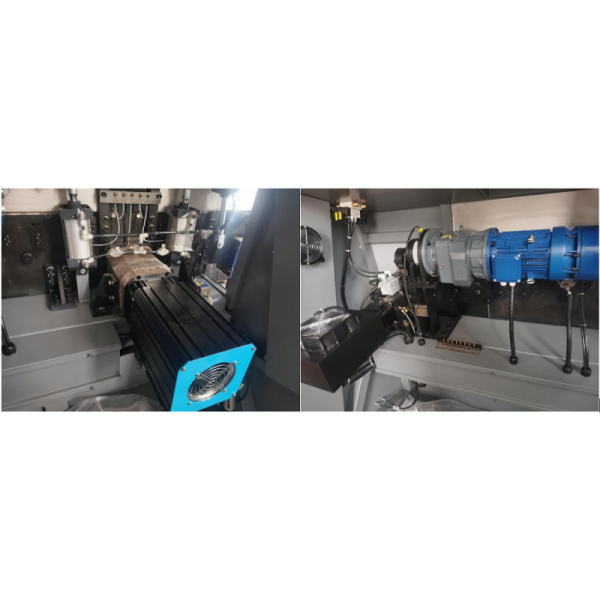

1. Equipped with an Italian servo motor and system for greater reliability and durability.

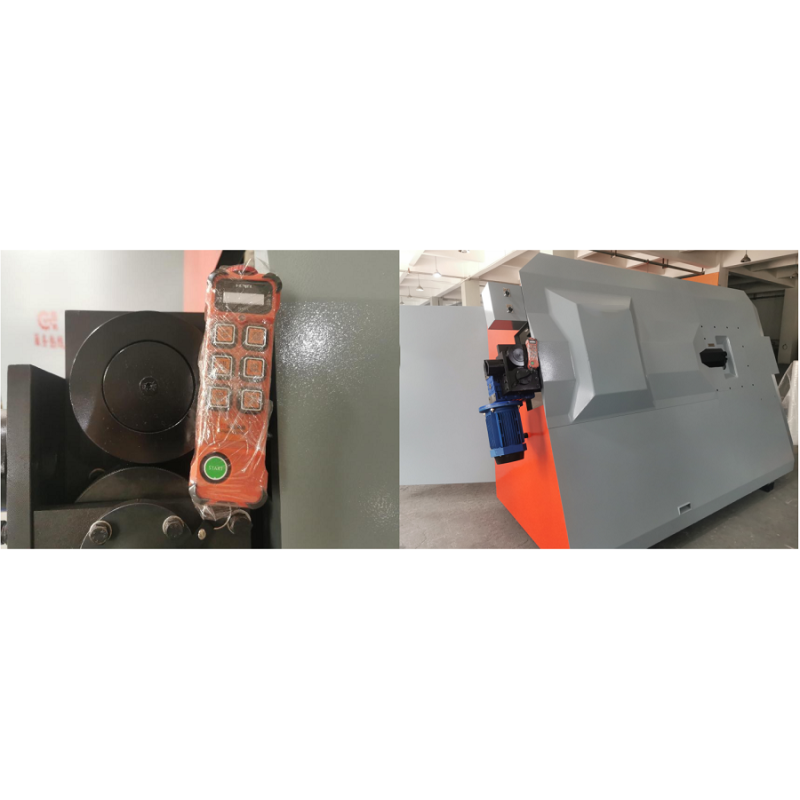

2. The feeding part is equipped with a motor and remote function, making it easy to feed the steel bar.

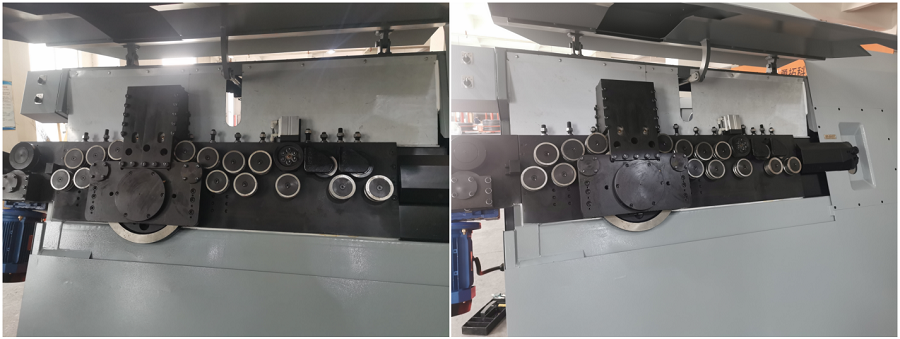

3. The bending head can move up and down to create more shapes and make stirrups more perfect.
FAQ
1.Is your company manufacture or trading company ?
We have manufactured steel bar processing equipments for more than 10 years,The professional R & D team, reliable quality assurance system and advanced production process ensure the stable quality of products, and have obtained a number of patents in the development process, which is at the leading level in the domestic industry.
2.Can i come to visit your factory and see the jobsite?
Yes,our factory located in chengdu city,sichuan province,in the west of china,you can fly to shuangliu airport,and we will come to airport to pick you up,also we will book hotel for you and arrange food.you will have nice days in china.
3.Did your machine approved ISO?
We have approved ISO9001 certificate for all of our machine,that will do best quality for every customer
4.Can you help us contact the shipping agent?
Yes of course,we are doing export for many years,and know many good price and good service forwarder,we can quote you best quotation for sea freight.
Factory Show
